What is the purpose of a backflow preventer?

A backflow preventer is a device that's installed on your home's water pipes that allows water to flow in one direction but never in the opposite direction. Its sole job is to prevent drinking water from being contaminated due to backflow.

Hereof, do I really need a backflow preventer?

The key to preventing backflow is to have a properly installed, maintained, and inspected backflow prevention device as part of your culinary water system. The answer is: you need backflow prevention if you have a culinary water connection that may be used to supply a sprinkler system.

Additionally, what causes backflow in plumbing? There are two main causes of backflow in plumbing – back pressure and back siphonage. Back pressure is when water is forced to flow in the opposite direction. Back siphonage occurs when the pressure in the water supply becomes smaller than the pressure in the plumbing system.

Just so, what is the difference between a check valve and a backflow preventer?

Re: Check valve vs backflow preventer Use a backflow preventer, more fail safe in that it can drain away water trying to back into the potable system, whereas a check valve cannot. Buy a water meter box and put it underground in that as well as the shutoff and drain valves, if that works for you.

Who is required to have a backflow preventer?

Customers who have an irrigation system that uses potable (drinking) water or an auxiliary water source that is not connected to a JEA irrigation meter are also required to have a backflow preventer installed on their system.

Do I have a backflow valve?

How do I know if my home has a backwater valve? If you aren't sure, take a look around your basement — backwater valves are usually located in the floor and have a cover that can easily be removed for maintenance. The cover itself is likely round, but there may also be a rectangular panel on top.

Do I need a backflow preventer on my garden hose?

The purpose of a backflow preventer on a garden hose spigot is to prevent tainted water from entering the drinking water system. Like most things in this world a backflow preventer will break down over time. It will either start leaking or in some cases it won't let water even through the hose spigot at all.

Can I install backflow preventer?

Install backflow preventers above ground and outside.To maintain proper protection of the water supply, backflow prevention valves can be installed outside and above grade. To protect the devices themselves, use protective enclosures.

Is a vacuum breaker a backflow preventer?

A vacuum breaker, commonly referred to as a backflow preventer, is a device that prevents the potable water in your home, and possibly even your neighborhood, from getting contaminated.

Do I need a backflow preventer on my boiler?

A boiler backflow preventer is designed to prevent the cross contamination of drinking water from boiler discharge and other contaminating water. The backflow preventer is required by many communities as a required piece of equipment that is attached to the boilers.

How much does it cost to replace a backflow preventer?

Cost to Install or Replace a Backflow PreventerOn average, backflow preventer installation costs about $300. Most homeowners pay between $135 and $1,000 depending on the size and type of the system. The device itself ranges from $35 to $600, while professional labor costs between $100 and $400.

What happens when a backflow preventer fails?

Some of the most common problems that could cause your backflow preventer to fail include: Faulty first check valve. The first check valve in a reduced pressure backup preventer opens up at certain water pressures, allowing the water to then pressurize the space between the first and second check valves.

Can a backflow preventer cause low water pressure?

If every fixture in the house has low water pressure, the cause may be corroded piping, a restriction of the line due to a failed pressure relief valve (PRV) or backflow preventer, low municipal water flow or a valve partially closed. If the pressure is below 20 PSI, contact your local water supplier.

Can a backflow preventer cause water hammer?

If the system has a backflow preventer installed, it is considered a closed system and the pres- sure wave can bounce back and forth in the piping like a ping-pong ball. Water hammer can normally be controlled by an air chamber installed within the piping system.

Where is the backflow located?

COMMON BACKFLOW FAQSOften irrigation system backflow devices will be located in a black or green box or can near the water meter. Capping, or physically disconnecting your irrigation system, is the only way to be exempted from the requirement.

How does a reduced pressure backflow preventer work?

The check valves in an RP will open when something downstream of the RP in the piping system opens a water-using fixture, and as the water begins to flow to that fixture, the pressure drops. The pressure upstream of the fixture begins to drop as the water flows through the fixture.

Why does my backflow preventer leak?

Leaking at the BackFlow Preventer. A persistent slow leaking from the back flow preventer is most commonly caused by debris such as dirt or sand from the domestic water source getting into the seat of the relief valve and keeping it from shutting all the way.

Can a check valve be used as a backflow preventer?

A backflow preventer protects your potable water. A check valve controls flow but it is not absolute. A check valve is not an appropriate substitute for a backflow preventer.

When should check valves be used?

Types of Check Valves: Stop-Check ValvesStop-check valves can be used for many applications. They're designed to start, stop, and regulate the flow of materials, and they help to prevent backflow. If pressure in the system is too low, these valves will automatically close to prevent reverse flow.

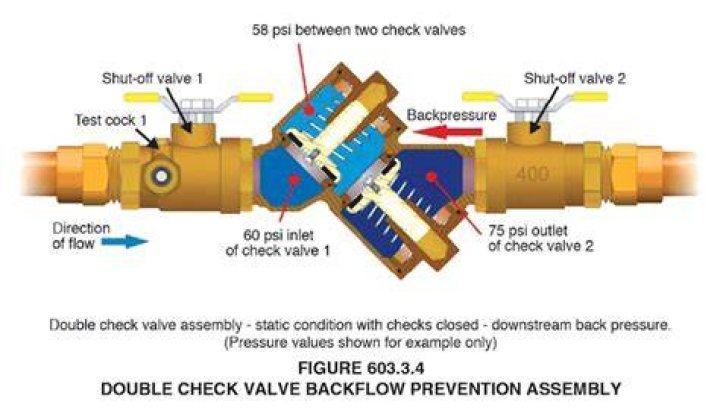

Is a double check valve the same as a backflow preventer?

A double check valve or double check assembly (DCA) is a backflow prevention device designed to protect water supplies from contamination. Secondly the closure of one valve reduces the pressure differential across the other, allowing a more reliable seal and avoiding even minor leakage.

What is a DCVA backflow?

A DCVA is a mechanical backflow preventer that consists of two independently acting, spring-loaded check valves. It includes shutoff valves at each end of the assembly and is equipped with test cocks.

What does a check valve?

Simply put, a check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are one of the few self-automated valves that do not require assistance to open and close.
