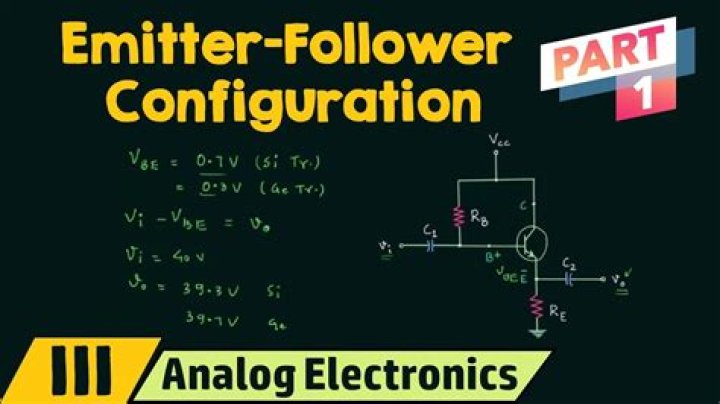

What is emitter follower configuration?
Gabriel Cooper Also to know is, why is it called emitter follower?
Because of this behavior, the common-collector amplifier circuit is also known as the voltage-follower or emitter-follower amplifier, because the emitter load voltage follows the input so closely. The output is the same peak-to-peak amplitude as the input.
Beside above, what is emitter follower amplifier? The common-collector (CC) amplifier is usually referred to as an emitter-follower (EF). The input is applied to the base through a coupling capacitor, and the output is at the emitter. The voltage gain of a CC amplifier is approximately 1, and its main advantages are its high input resistance and. current gain.
In this regard, what is meant by emitter follower?
Emitter Follower is a configuration with the collector serving as the common terminal in both forward bias and reverse bias circuits. The CC configuration is called the Emitter Follower because the voltage gain of this configuration is 1. Hence, the output voltage is same as input voltage.
What is common emitter configuration?
Common Emitter Connection (or CE Configuration) Definition: The configuration in which the emitter is connected between the collector and base is known as a common emitter configuration. The input circuit is connected between emitter and base, and the output circuit is taken from the collector and emitter.
Where is CC configuration used?
CC - common collector : commonly used as unity gain buffer and sometimes called emitter follower. It provides high input impedance, low output impedance and high bandwidth. Perfect for driving heavy loads.Why emitter follower is used?
The emitter follower or common collector transistor configuration is widely used in many applications. The emitter follower or common collector circuit configuration acts as a buffer, presenting a high impedance to the circuit that is driving it, while offering a lower impedance output.What is a buffer circuit?
A buffer is a unity gain amplifier packaged in an integrated circuit. Its function is to provide sufficient drive capability to pass signals or data bits along to a succeeding stage. Voltage buffers increase available current for low impedance inputs while retaining the voltage level.What is the other name of CC amplifier?
In electronics, a common collector amplifier (also known as an emitter follower) is one of three basic single-stage bipolar junction transistor (BJT) amplifier topologies, typically used as a voltage buffer.Why it is used as a buffer amplifier?
A voltage buffer amplifier is used to transfer a voltage from a first circuit, having a high output impedance level, to a second circuit with a low input impedance level. The interposed buffer amplifier prevents the second circuit from loading the first circuit unacceptably and interfering with its desired operation.What is the voltage gain of an emitter follower?
Emitter Follower DiscussionThe common collector junction transistor amplifier is commonly called an emitter follower. The voltage gain of an emitter follower is just a little less than one since the emitter voltage is constrained at the diode drop of about 0.6 volts below the base .What is Darlington emitter follower?
A darlington emitter follower is two transistors operating as one. Both collectors are tied together. The emitter of the first is connected to the base of the second. This means that the overall current gain, β is given by the gain of the first transistor multiplied by the gain of the second transistor.What is a common base amplifier?
In electronics, a common-base (also known as grounded-base) amplifier is one of three basic single-stage bipolar junction transistor (BJT) amplifier topologies, typically used as a current buffer or voltage amplifier. The analogous field-effect transistor circuit is the common-gate amplifier.What is Vcc voltage?
Vcc. An electronics designation that refers to voltage from a power supply connected to the "collector" terminal of a bipolar transistor. In an NPN bipolar (BJT) transistor, it would be +Vcc, while in a PNP transistor, it would be -Vcc. Double letters (cc) refer to power supply voltages.What is source follower?
In electronics, a common-drain amplifier, also known as a source follower, is one of three basic single-stage field effect transistor (FET) amplifier topologies, typically used as a voltage buffer. That resistance reduction makes the combination a more ideal voltage source.How does an emitter follower work?
An emitter follower circuit is a transistor circuit in which the voltage at the emitter follows the input voltage. It is a mirror image, so to speak, of the input voltage. Therefore, the voltage at the output is the same as the voltage at the input.What is electronic bias?
Bias is direct current ( DC ) deliberately made to flow, or DC voltage deliberately applied, between two points for the purpose of controlling a circuit . In a bipolar transistor , the bias is usually specified as the direction in which DC from a battery or power supply flows between the emitter and the base.Which type of feedback is used in emitter follower?
negative
