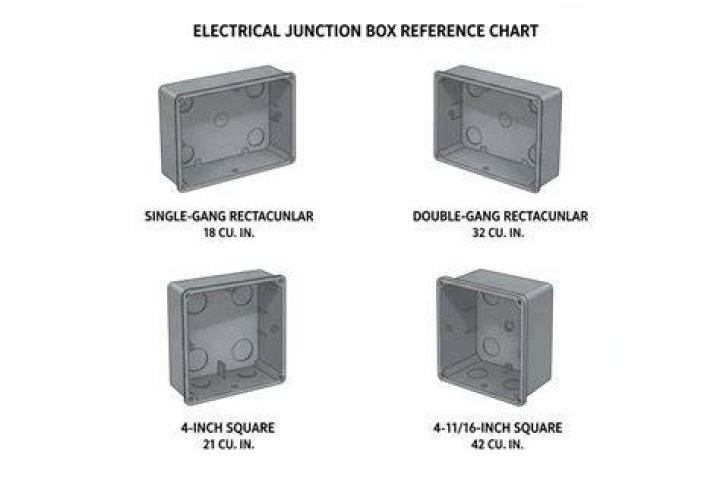

4 Square Junction Boxes. 4 square electrical boxes are often installed in ceilings or walls, and are used to form conduit or other wiring systems.People also ask, what is a standard J box?
The standard box used for junctions is a 4-inch square box, which offers plenty of space for making wire connections with multiple wires or cables, but other type of boxes can be also used for this application.
Additionally, what is a 4s box? 4” (4S) Boxes. Orbit Industries' 4" Square (4S) Boxes Extension Rings are used to install lighting fixtures, switches, and receptacles in ceilings and walls. Our selection includes 1-1/4", 1-1/2", 2-1/8", 3-1/2" depths and multiple 1/2", 3/4" knockouts, with both welded steel and drawn steel construction.
Keeping this in view, what is a electrical J box?
An electrical junction box is an enclosure housing electrical connections, to protect the connections and provide a safety barrier.
When would you use a junction box?
Whenever you splice wires together while installing residential circuitry, the electrical code requires you to enclose the connections in a junction box. This safety measure prevents fires that can occur when the wires overheat and also protects people from getting shocked by live wires.
Should I use plastic or metal electrical boxes?
Plastic boxes don't use metal cable clamps and do not provide the required grounding path. Metal electrical boxes are primarily used with metal-sheathed or "BX" wiring. However, they can also be used with Romex or NM wiring if desired. Most new residential electrical systems use Romex and plastic boxes.Does a junction box need a cover?
A: It is important to cover an electrical junction box no matter where it's located. With several wires in one box, the heat generated can be multiplied. Not only does the cover protect the wiring from accidental human contact, it also prevents the spread of a fire should the wires overheat.Why junction box is used?
Junction boxes are primarily used for identifying where the Junctions are in a wiring circuit hence the name - Junction Box - ( or JB enclosure) and also to keep rodents out, and act as a support points for interconnecting cable conduits. They also act a neat way to cover numerous wires into a common point or junction.Can you install a light without a junction box?
If you're wondering how you install a light fixture without an electrical box, the short answer is that you don't. You can't install a light fixture without a junction box, but the fact that there's no box at the spot where you want to install the light doesn't mean you can't install the light.Can I put a junction box in the wall?
A junction box, also known as a splice or switch box, is an electrical enclosure inside your home that contains wiring. Electrical wires run behind the walls and through the ceiling of your home, meeting at junction boxes. It is a safety hazard to completely bury a junction box in a wall.How do I know if my junction box is rated for a fan?
If those screws do, in fact, extend into the back of the box, it is fan rated. Now, make sure it has at least two large head screws fastened into a framing member above it. It looks as if there are, as the grounding wire is encircling one. Caulk, fan rated boxes don't come with any threaded rods.Where are junction boxes located?
Junction boxes are often located on walls near compressors, pumps or large pieces of equipment. In addition, junction boxes are often used on the roof of commercial buildings to provide access to circuits associated with air conditioning units and ventilation fans.Can junction boxes be behind drywall?
The National Electrical Code (NEC) dictates that no wiring splices are allowed outside of an approved enclosure. One type of approved enclosure is a junction box. Junction box covers must remain accessible; they cannot be covered with drywall or other surface material.Can a handy box be used as a junction box?
Handy Box: Mounts on the surface of a wall. Can contain light switches or receptacle Ideal for areas where behind-the-wall installation is difficult or not possible. Junction Box: Wires connect only to each other, never to a switch, receptacle or fixture.Are junction boxes bad?
Overfilling a Junction BoxCramming too many wires into a junction box is not only dangerous, but it's against the National Electrical Code. Plastic junction boxes are stamped with their approved volume; you may have to calculate the volume of a steel box on your own.Can you use a junction box to extend wiring?
If you do need to extend the wires, yes, a junction box would be needed. It must remain accessible. You've pretty well identified your two choices; if you don't want to re-run longer cables, you'll need to splice in some additional cable.How many connections can be in a junction box?
Counting Wires in Electrical BoxesEach switch, outlet, or other device counts as two wires.Can I put a junction box in the attic?
Junction Boxes in Insulated AtticsIn this case, the boxes will open into the attic; occasionally they're uncovered. Since insulation is combustible, you must install face plates on all attic junction boxes to prevent contact between bare wires and insulation materials.Can a junction box be inside a cabinet?
Yes, it would be against code to have a cabinet cover the junction box. Anywhere you connect wires to wires, or wires to fixtures, the connection needs to be accessible. Since your cabinet would be permanently affixed to the wall and covering the junction box, it wouldn't be allowed.What is an old work box?
An old work box is an electrical box for light switches, outlets, and other devices that are installed after drywall has been installed on the wall studs. The term old work (sometimes old construction or retrofit) refers to walls that are already covered up, making it impossible to access the studs.What does an electrical junction box look like?
What Does a Junction Box Look Like? It's a standard electrical box usually found mounted to the framing of a home or building that contains the connection of two or more circuit cables or wires. Junction boxes are usually metal or plastic and can range from 2 ½” to 3 ½” deep.What is a 5s box?
4-11/16” (5S) Boxes. Orbit Industries' 4-11/16" Square (5S) Boxes and Extensions Rings are used to install lighting fixtures, switches, and receptacles in ceilings and walls.
